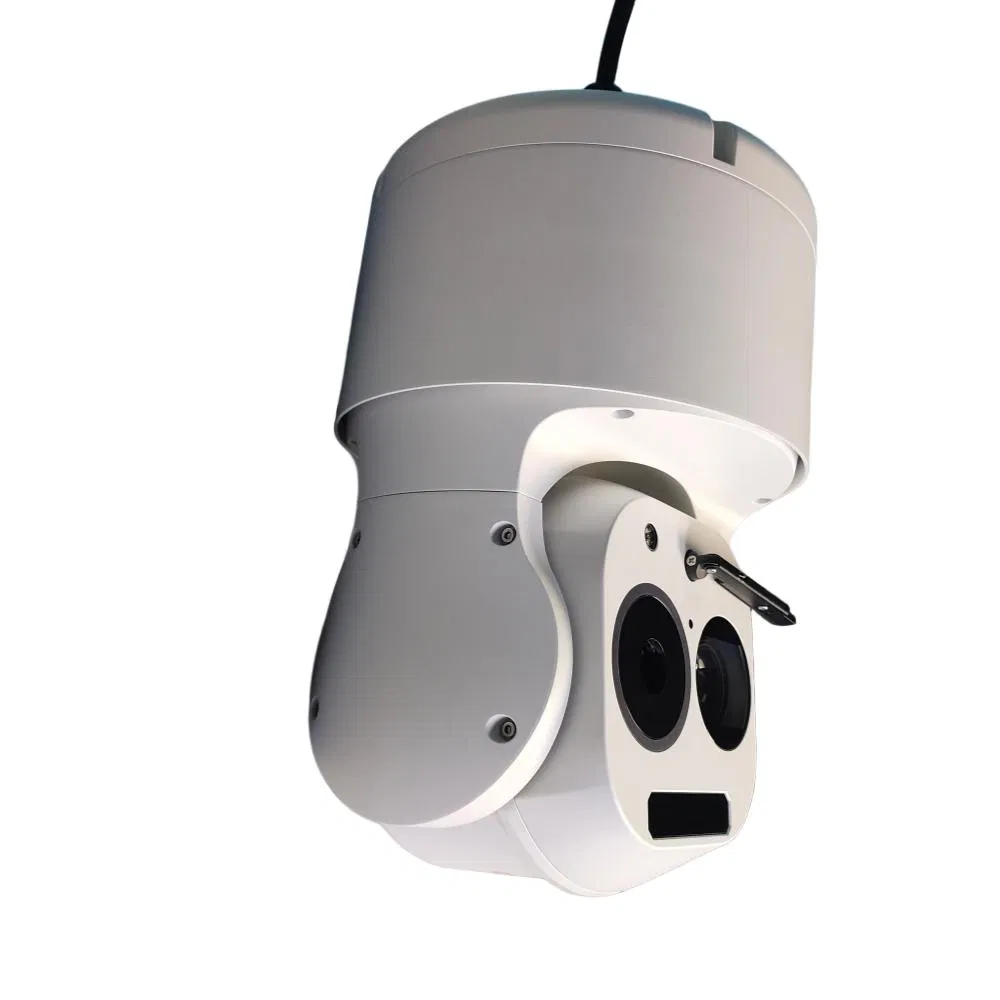

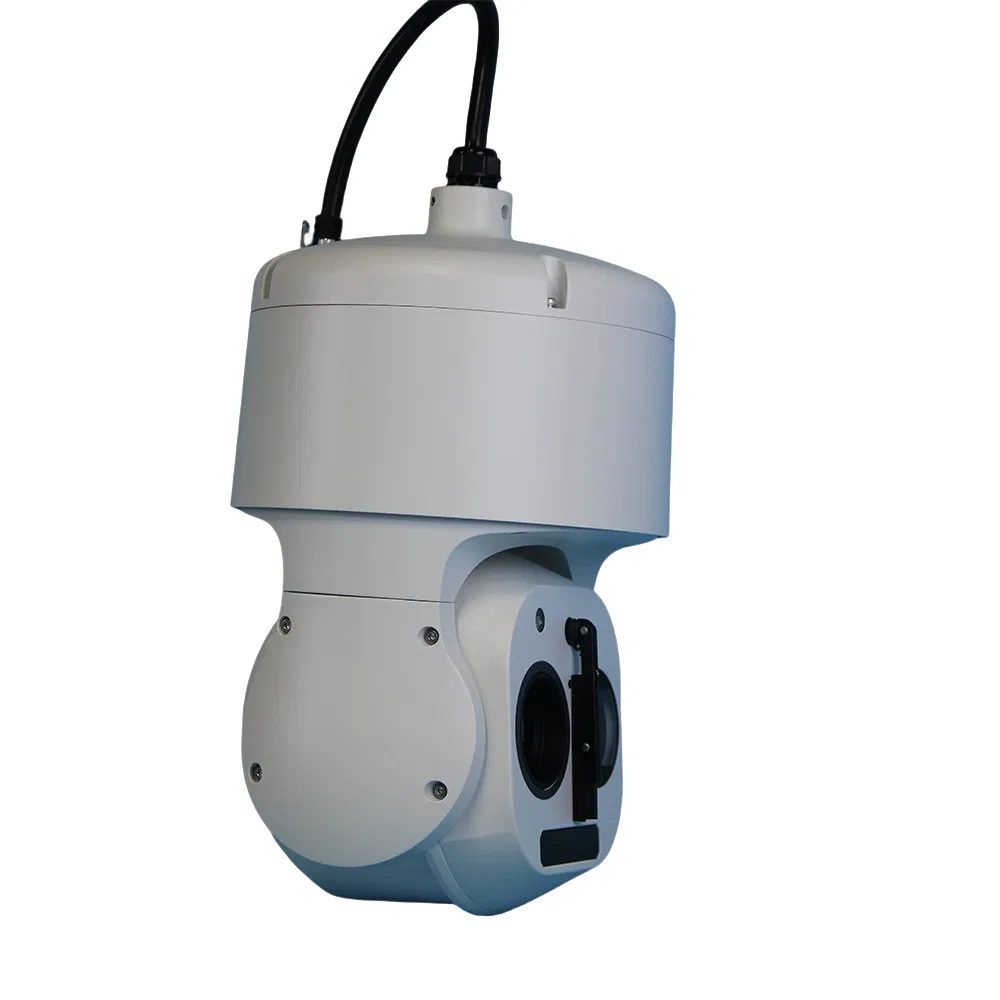

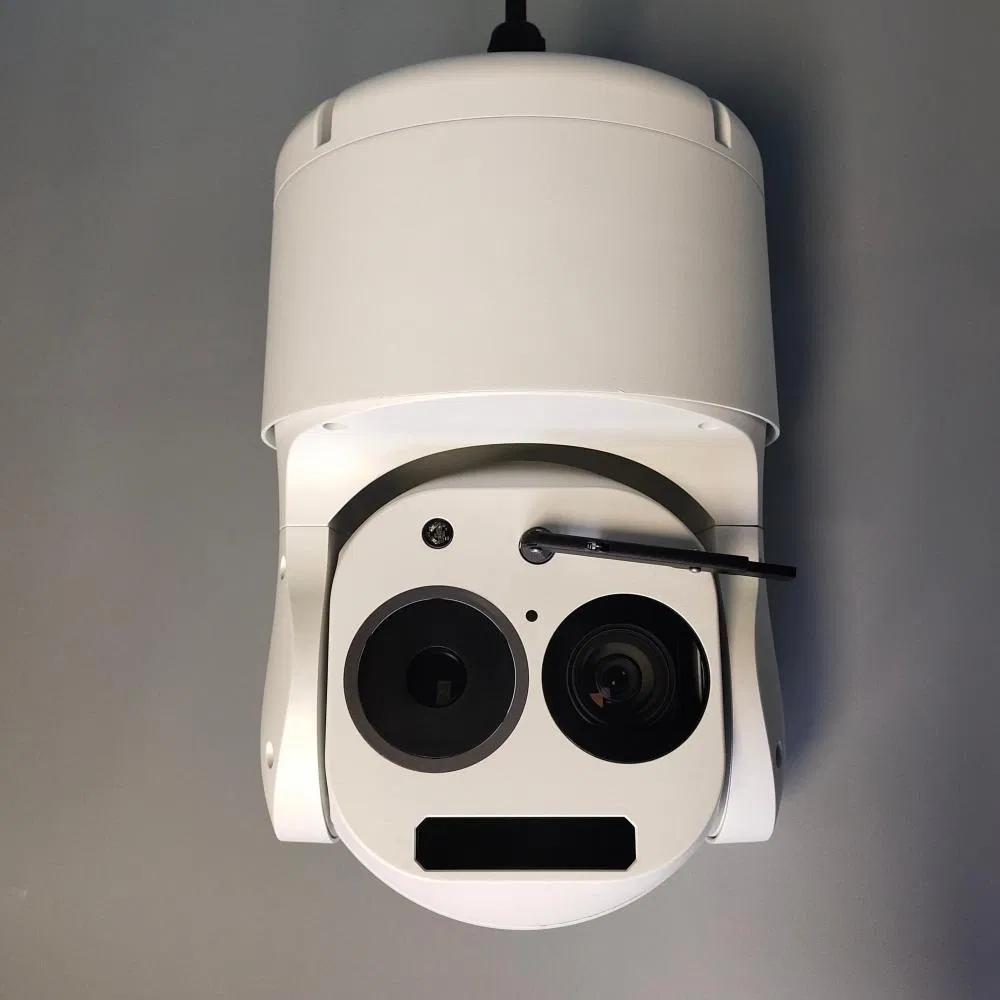

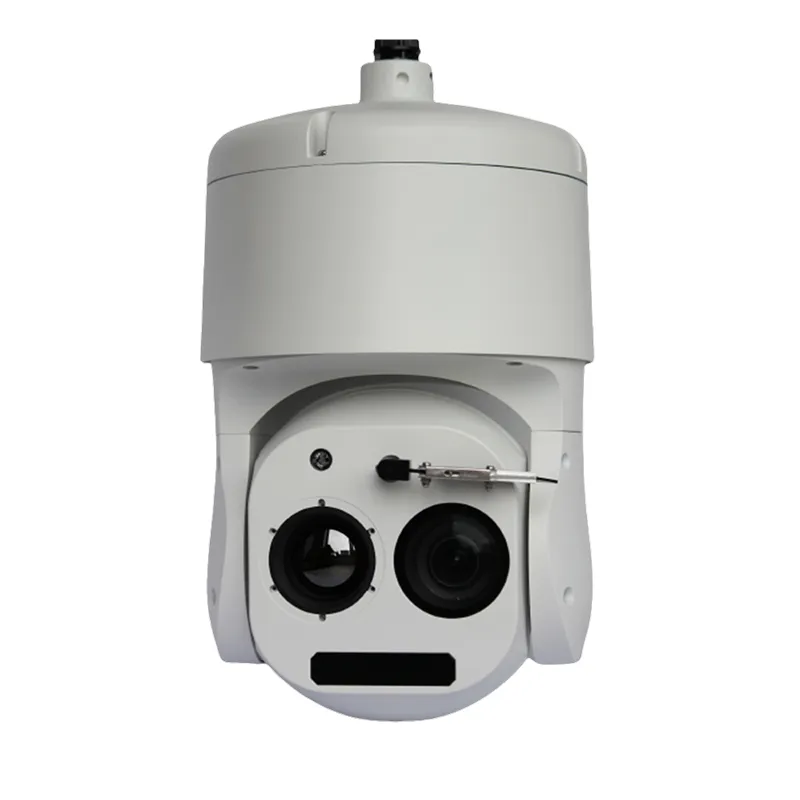

HawkEye Camera
1 / 5

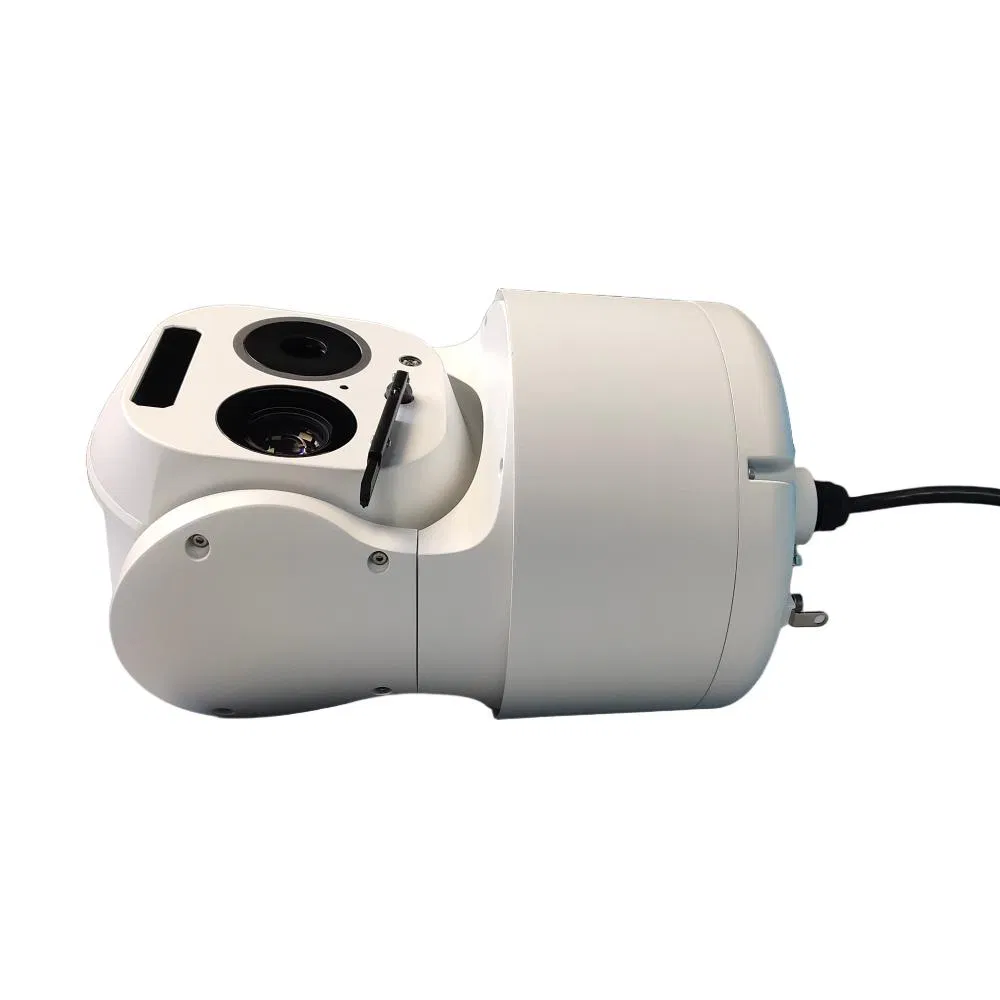

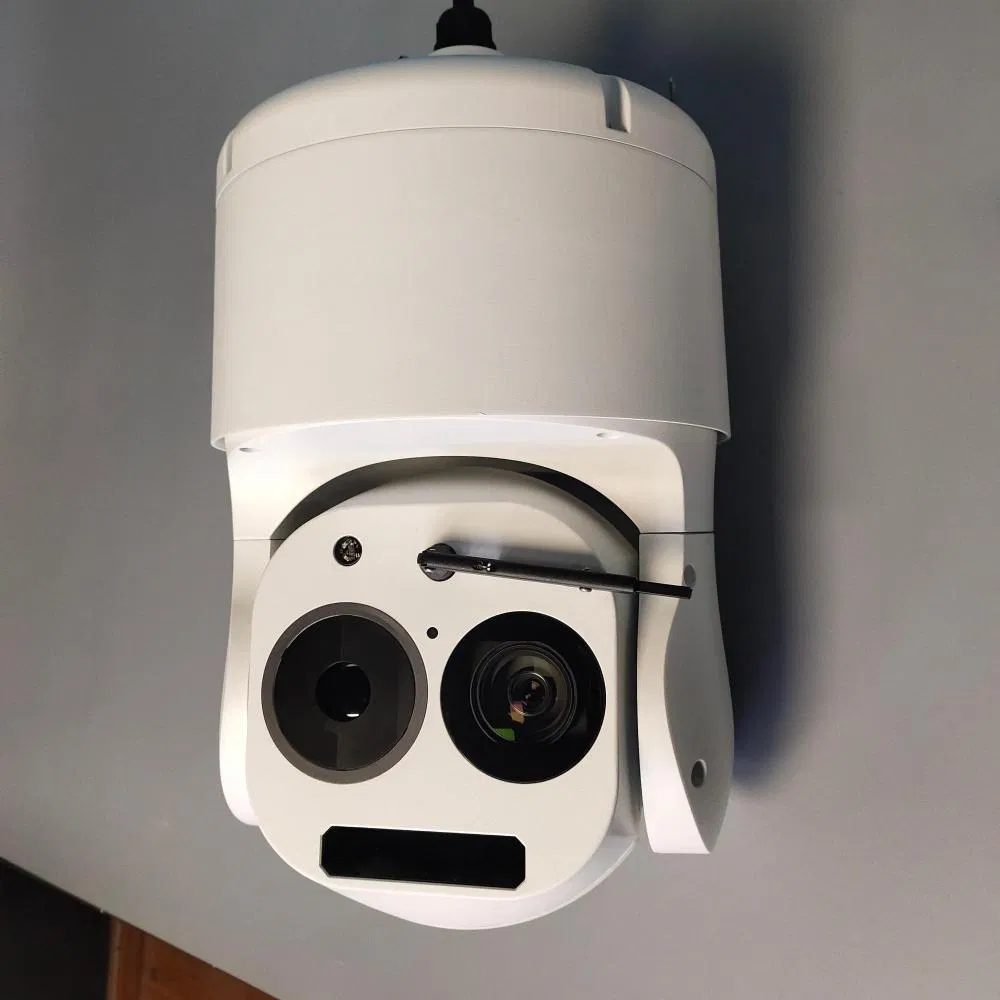

With up to 4MP video resolution, on-board illumination, and 40x optical zoom, the series IR Network Speed Dome PTZ Camera delivers critical situational awareness. Exceptional field of view gives operators the ability to monitor key details throughout large areas.
The combination of high performance optics and sensors, exceptional low light visible imaging, and effortless integration with all major third-party VMS makes IR PTZ cameras an ideal solution for critical infrastructure sites and remote facilities that require close monitoring.
| Thermal Imaging | |
| Detector | VOx Uncooled Focal Plane Arrays |
| Array Format/Pixel Pitch | 640x512/12μm |
| Frame Rate | 50Hz |
| Response Spectra | 8-14μm |
| NETD | ≤50mK@25℃, F#1.0 |
| Lens | 50mm |
| Visible Camera | |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Effective Pixels | 2688(H)*1520(V), 4MP |
| Minimum Illumination | Color: 0.0005 Lux; B/W: 0.0001 Lux (IR ON) |
| Focal Length | 6.6mm-264mm, 40x optical zoom |
| PTZ Performance | |
| Movement Range | Pan: 360° Continuous; Tilt: -27° to 90° |
| Pan/Tilt Speed | Pan: 0.05° to 200°/s; Tilt: 0.05° to 120°/s |
| Presets | 255 Presets |
| General | |
| Infrared Distance | Up to 150m |
| Protection | IP66, TVS 4000V lightning protection |
| Operating Condition | -40 °C to 60°C. Humidity 90% or less |
Specializing in designing and developing PTZ camera systems and advanced optical imaging solutions, we serve demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our expertise extends to mobile surveillance, power line inspection, forest fire prevention, and industrial machine vision.
