Weather-Resistant Mobile Surveillance PTZ with Advanced Dual Sensor

Customization: Available
Technology: Infrared
Style: Pan/Tilt

Product Description

Basic Information
Model NO.SOAR970-TH SeriesTypeBinocular
SensorCMOSHDMI Format1080P
Horizontal Resolution4MP, 8MPKindAutofocus Lens
CertificationCEFeatureWaterproof, High Definition, Thermal Imager
Effective Distance3kmSensor Size1/1.8inch
ApplicationMobile SurveillanceDual SensorSupport
📄Product Description

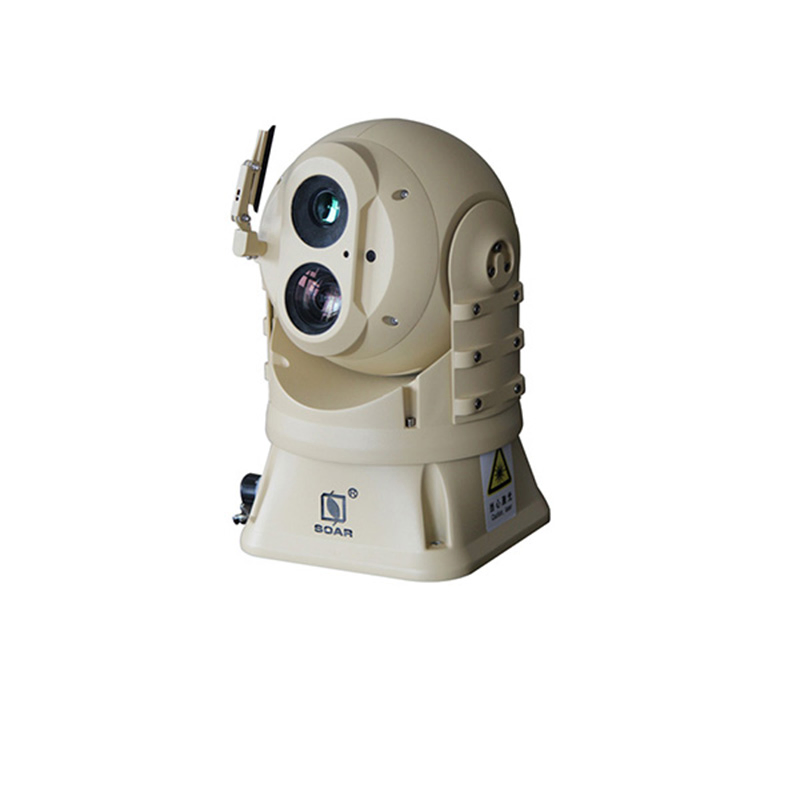

SOAR970 vehicle mounted PTZ Camera
SOAR970 vehicle mounted PTZ Camera
The SOAR970 series mobile PTZ is designed specifically for mobile surveillance applications. With its excellent waterproof capability up to IP67, it is also widely used in marine environments. The PTZ can be ordered with HDIP (2MP, 4MP, 4K) and features integrated IR LED or laser illumination, allowing visibility from 150m up to 800m in complete darkness. It offers dual sensor options, combining an HD visible camera (up to 33x zoom) and a thermal imager (up to 1280x1024 resolution).
Built to withstand the harshest conditions, the SOAR970 features an IP67-rated housing, providing protection against immersion, heavy rain, salt spray, and dust. This makes it an ideal choice for marine surveillance, coastal monitoring, and offshore platforms.
Product Highlights
  • 1920×1080 Progressive Scan CMOS, Optional 2MP, 4MP, 4K resolution
  • 33X Optical zoom, 5.5~180mm focal length
  • Thermal imager 640x512, focal length up to 40mm
  • 360 degree endless rotation with high-speed tracking
  • IP67 Waterproof and Dustproof Design
  • Extreme Operation Temperatures: -40° to +65°C
  • Optional damper absorber for vehicle stability
📋Technical Specification
Thermal Imaging
DetectorVOx Uncooled Infrared FPA
Array Format/Pixel Pitch640x512/12μm
Lens40mm
NETD≤50mk@25℃, F#1.0
Visible Camera
Image Sensor1/2.8” Progressive Scan CMOS
Effective Pixels1920(H) x 1080(V), 2 MP
Focal Length5.5mm~180mm (33x Optical)
Pan/Tilt
Pan Range / Speed360° (endless) / 0.5°/s ~ 80°/s
Tilt Range / Speed–20° ~ +90° / 0.5° ~ 60°/s
General
PowerDC 12V-24V; Consumption ≤24w
Working Temperature-40℃~60℃
Ingress ProtectionIP66/IP67
📏Dimension
SOAR970 Dimension
🌐Application Scenarios
Law Enforcement
Defense
Infrastructure
Law Enforcement & Public Safety

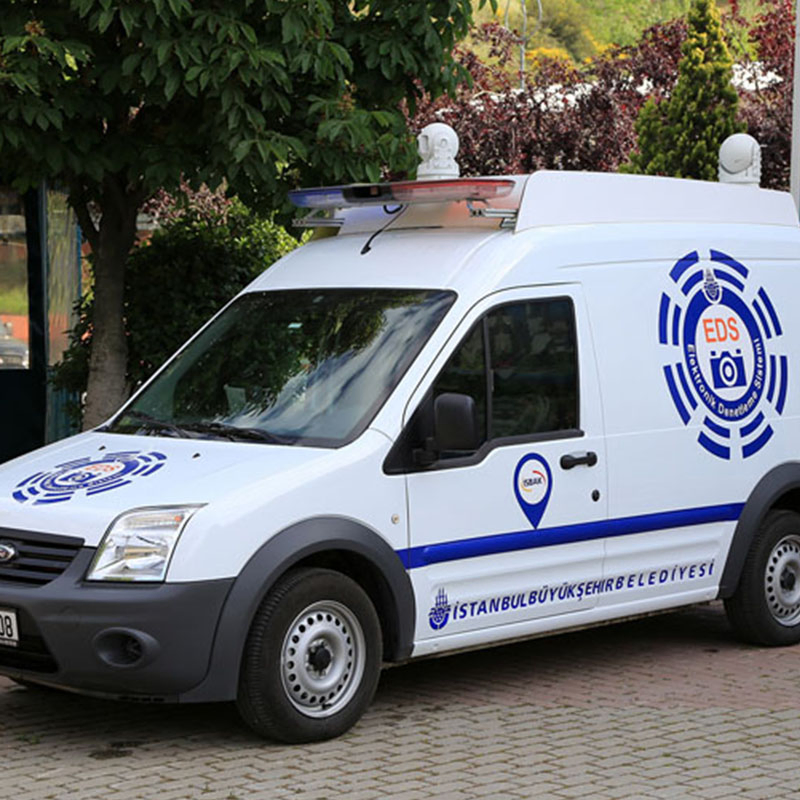

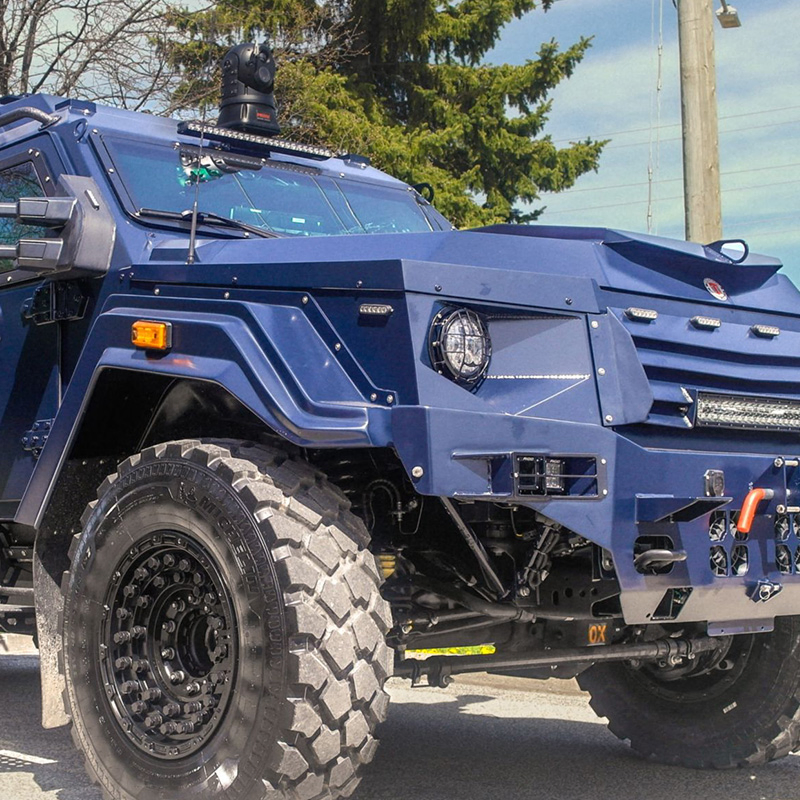

Patrol cars, SWAT vehicles, and reconnaissance units requiring rapid deployment. Ideal for riot control, border security, and VIP protection.
Defense & Military

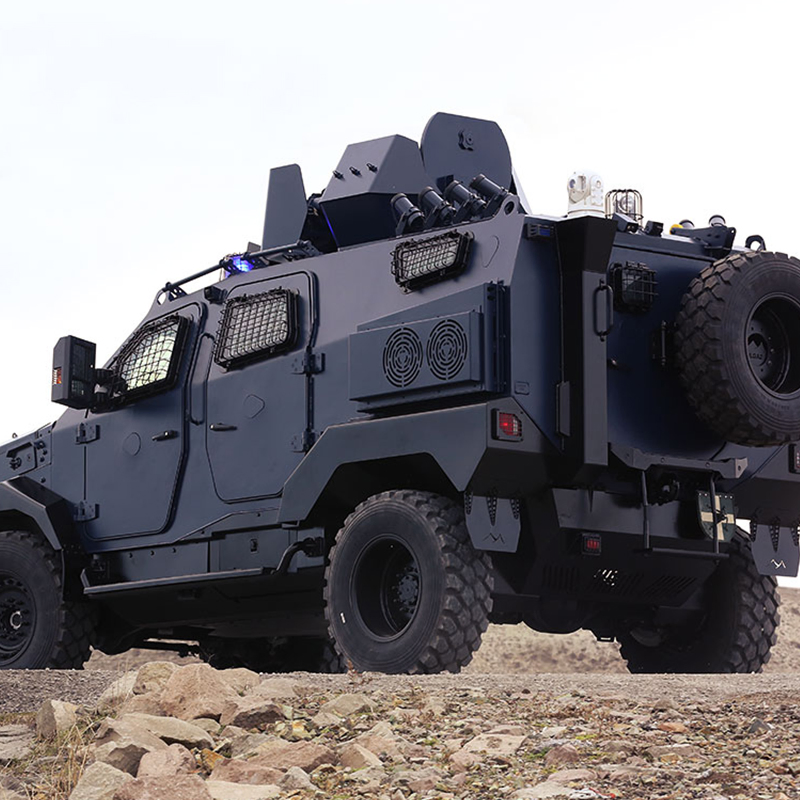

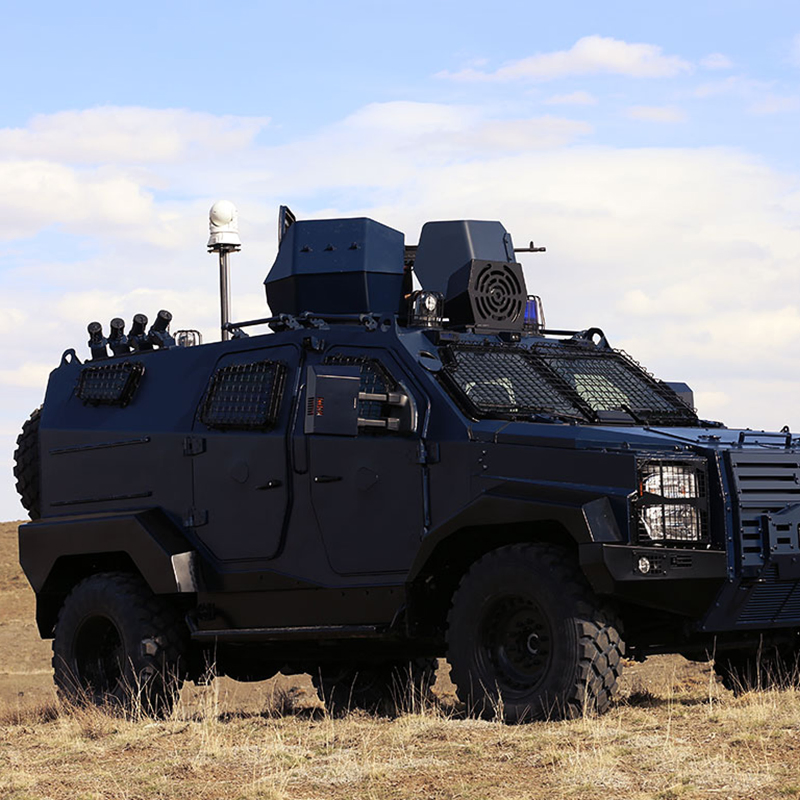

Tactical reconnaissance, battlefield surveillance, and convoy security for troop transports and armored vehicles.
Disaster Response
Fire command monitoring for wildfires, flood assessment, and search & rescue operations using thermal imaging.
Surveillance Application
Marine Application
Frequently Asked Questions
Q1: What is the estimated delivery timeline?
For small orders, delivery typically requires 7 working days. For bulk or customized orders, please confirm with our sales representatives.
Q2: Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model and customization requirements.
Q3: What payment methods are supported?
We accept standard payment terms, including T/T (Telegraphic Transfer).
Q4: What is the warranty coverage for PTZ products?
All PTZ products and camera modules are covered by a standard 1-year warranty.
Q5: Do you provide technical support after purchase?
Yes, we offer lifetime technical support. Our engineering team typically responds to technical inquiries within 24 hours.
Q6: Can this camera be used in marine environments?
Absolutely. With an IP67 waterproof rating and corrosion-resistant design, it is ideal for ships, yachts, and coastal monitoring.
